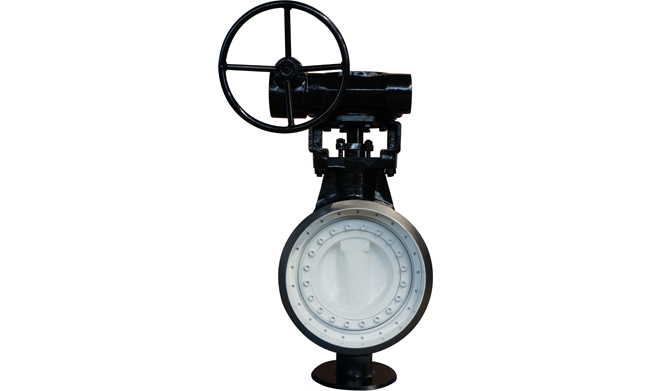

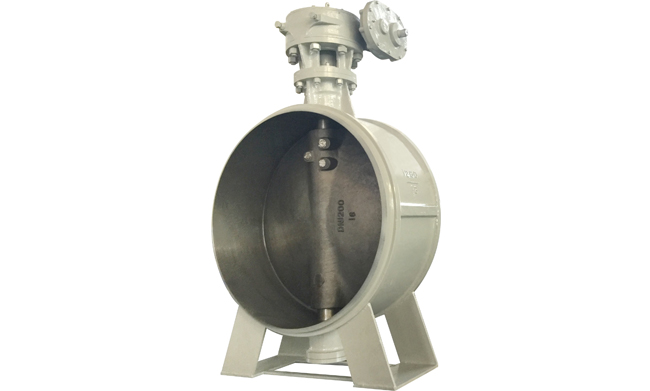

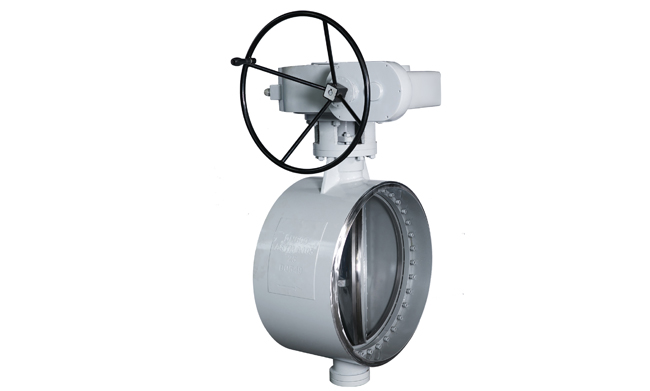

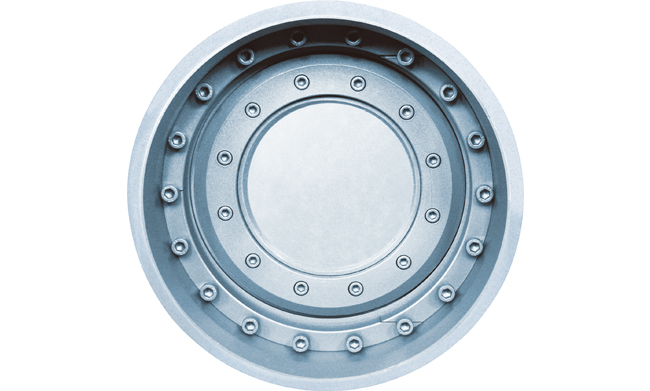

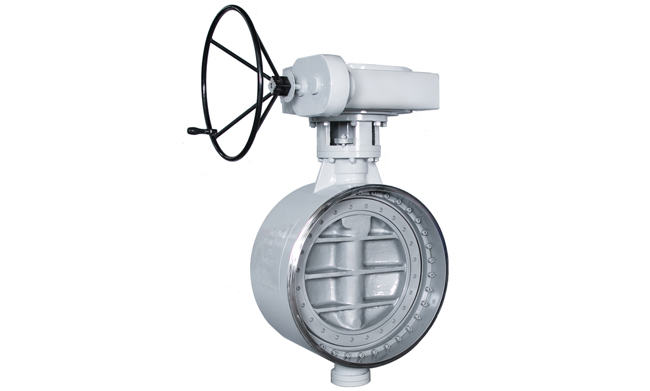

District Heating Butterfly Valve

Tipvalve District HeatingTriple Offset Butterfly Valve design is recommended for district heating and district cooling applications requiring reliable zero-leakage, bi-directional quick shut-off in harsh conditions of critical processes, steam isolation, and temperature extremes within co-generation (combined heat& power) systems, available in carbon and stainless steel the valves are designed for durability to provide low life time costs.
Tipvalve largest butterfly valves are 1400mm nominal bore! butterfly valves can be specified with laminated seal(stainless steel&graphite seal) or all-metal seal to make better sealing.


  • Design Feature

    • Bi-directional sealing

    • Floating seat

    • Renewable Seals

    • All-metal sealing

    • Zero leakage

    • Stem low leakage

  • Design Standard

    • Design: API 609

    • Face to face: API609 / ISO5752-20 / ISO5752-13

    • Butt-welding end: ASME B16.25

    • Test: API598

  • Technical Specification

    • Size: DN100~DN1400

    • Pressure: PN25

    • Connection: Butt weld

    • Operation: Worm Gear / Electric actuator

    • Temperature: -29°C to +300°C

    • Application:  Hight temperature water/High temperature steam

  • Material Option

    • Body: A105

    • Disc: Carbon steel(WCB) / Stainless steel(CF8,CF8M)

    • Stem: SS420 / 17-4PH

    • Disc Sealing: F316 harding coating

    • Body Seat: F6a harden / F6a+STL surfacing
