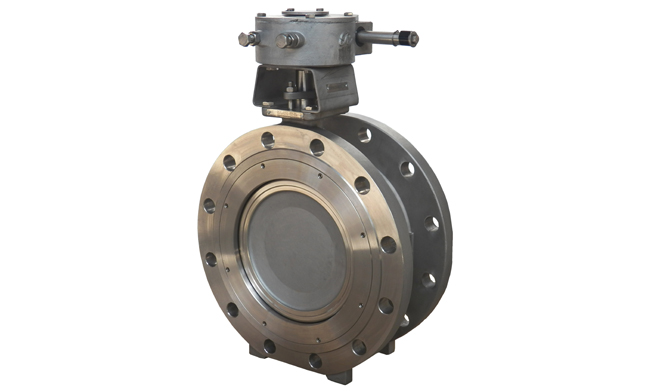

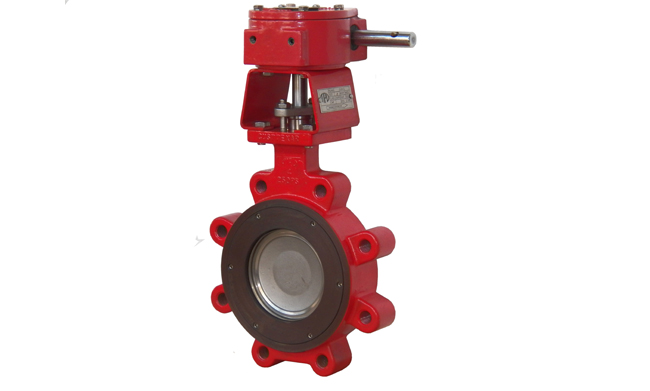

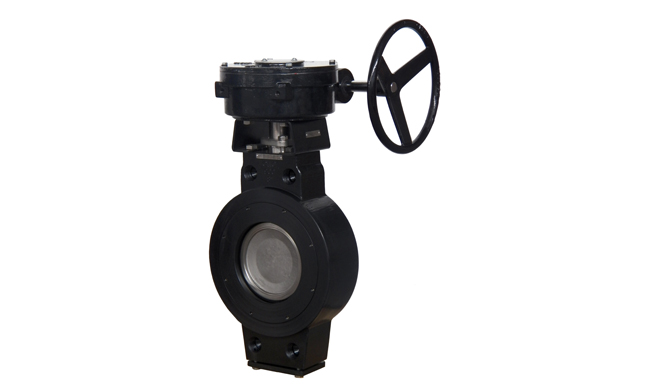

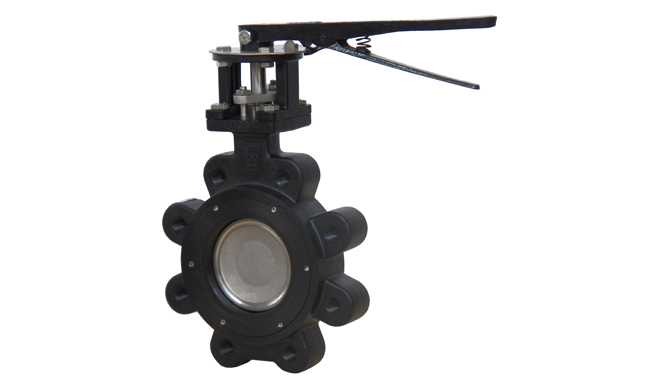

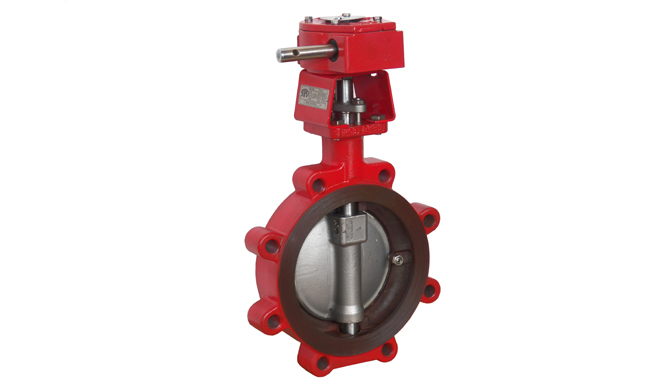

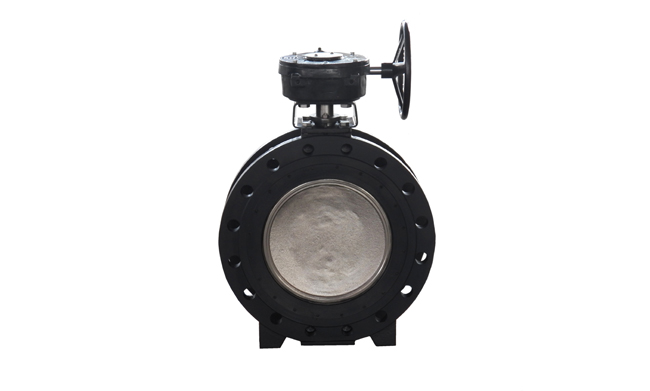

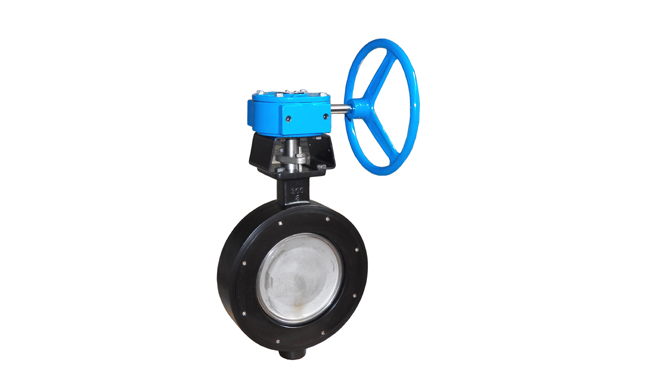

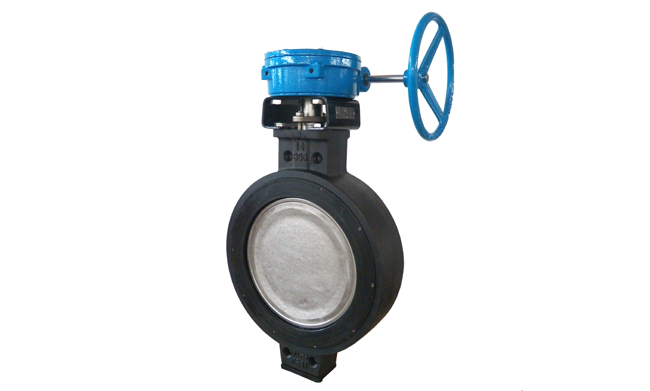

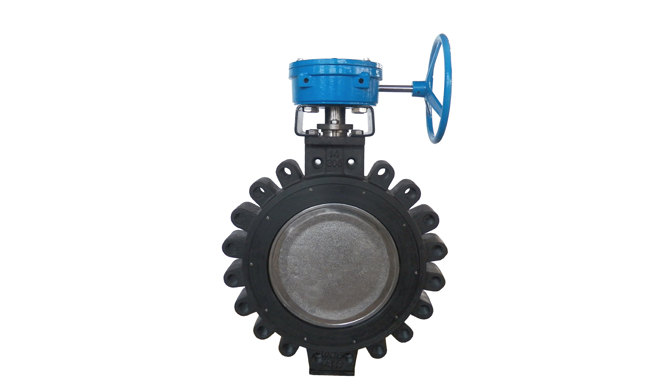

High Performance Butterfly Valve

The Tipvalve high performance butterfly valve's innovative design offers rugged reliability and extremely easy maintenance in the field. Independent and internal tests prove Tipvalve’s superior service life capability, with zero leakage shutoff. The Tipvalve High Performance Valve delivers the highest quality and highest value available for meeting today’s demanding requirements.
Available with proven bi-directional fire safe seats for reliable control of flammable and hazardous fluids in petroleum, petrochemical, chemical and other high-risk applications.The fire safe design combines superior performance, extended service life and compliance with the most demanding worldwide fire-test standards – before, during and after a fire!
The simple, innovative design offers rugged reliability and extremely easy maintenance in the field. Independent and internal tests have proven Tipvalve’s superior service life capability, with zero leakage shutoff through over long cycles. The Tipvalve valves can be automated inexpensively with Tiptronico’s pneumatic and electric actuators. The Tipvalve High Performance Valve delivers the highest quality and highest value available for your requirements.
  • Design Feature

    • Super long usage life

    • Bi-directional sealing

    • Zero leakage in air pressure

    • Regulated flow

    • Renewable seat

    • Blowout proof stem

    • Low torque

    • Low emission packing

    • Fire safe design

  • Design Standard

    • Design: API 609

    • Face to face: ANSI B16.10 / API 609 / MSS-SP-68 / ISO 5752-13 / ISO 5752-20

    • Flange end:  ASME 16.5 / ASME 16.47 / EN1092-2

    • Test: API598

    • Fire safe: API607 / API6FA

  • Technical Specification

    • Size: 2”~64”(DN100~DN1600)

    • Class:150Lb,300Lb,600Lb,900Lb,1500Lb(PN10,PN16,PN25,PN40,PN64,PN100,PN160,PN250)

    • Connection: Double flange / Lug / Wafer(Butt weld as request)

    • Operation: Manual / Worm Gear / Pneumatic actuator / Electric actuator

    • Temperature: -196°C to +650°C

    • Application: Oil&gas /
      industry of fine chemicals /
      offshore drilling platform /
      solar thermal electricity /
      air separation /
      Ultra low temperature or ultra high temperature severe condition
  • Material Option

    • Body: Carbon steel(WCB,LCB,WC6,WC9,C5) /
      Stainless steel(CF8,CF8M,CF3,CF3M) /
      Duplex stainless steel(4A,5A,6A) /
      Hastelloy alloy(N-12MV,CW-12MW,CW-2M) /
      Inconel alloy(CY-40,CW-6MC) /
      Monel alloy(M35-1) /
      Aluminium bronze alloy(C95400,C95500,C95800,AB2C)
    • Disc: Stainless steel(CF8,CF8M,CF3,CF3M) /
      Duplex stainless steel(4A,5A,6A)Hastelloy alloy(N-12MV,CW-12MW,CW-2M)/
      Inconel alloy(CY-40,CW-6MC) /
      Monel alloy(M35-1) /
      Aluminium bronze alloy(C95400,C95500,C95800,AB2C)
    • Stem: SS420 / 17-4PH / F53 / XM-19 / Monel-K500 / Inconel-625 / Hastelloy-276

    • Body Seat: RPTFE / SS316 /  Inconel / RPTFE + SS316 / RPTFE + Inconel
