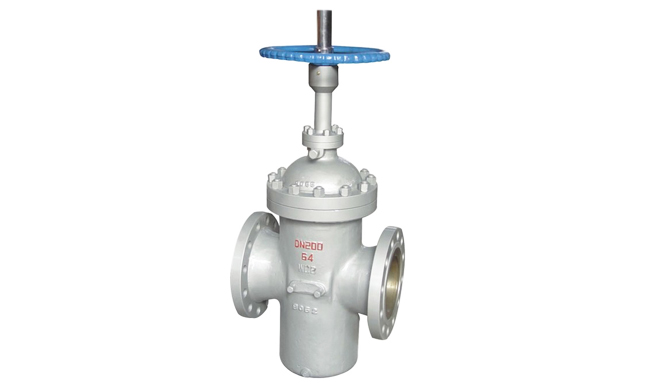

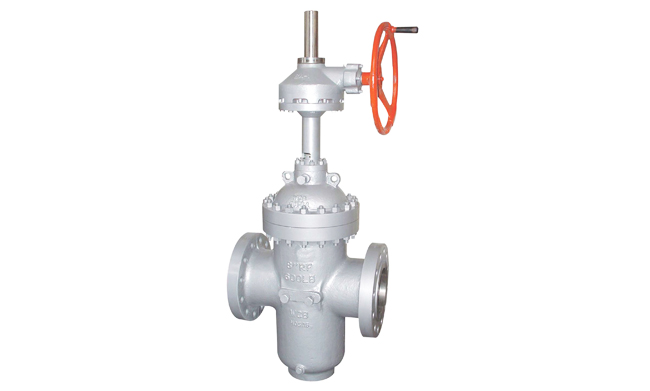

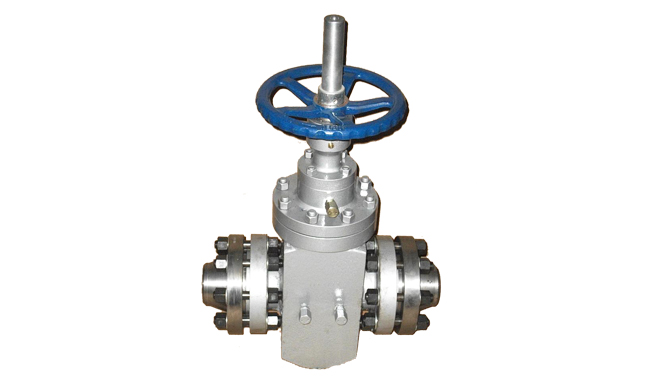

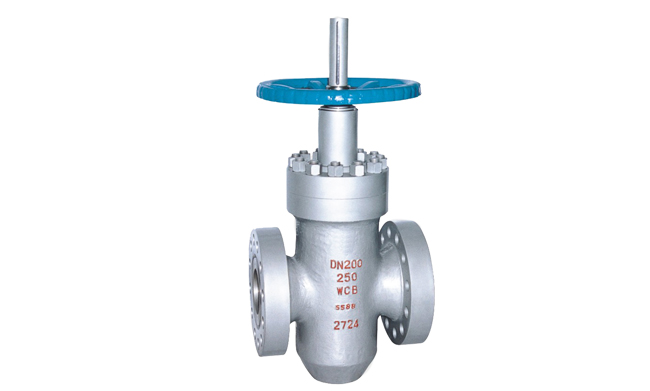

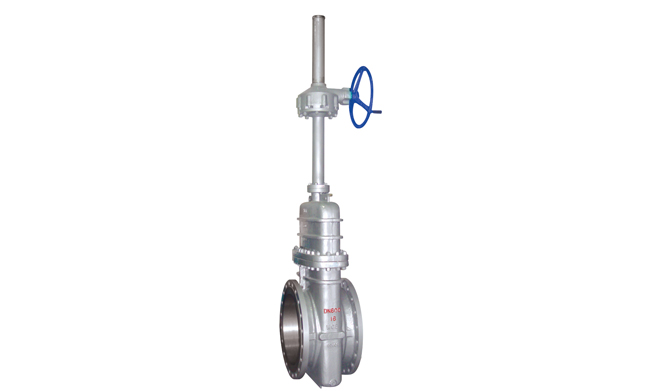

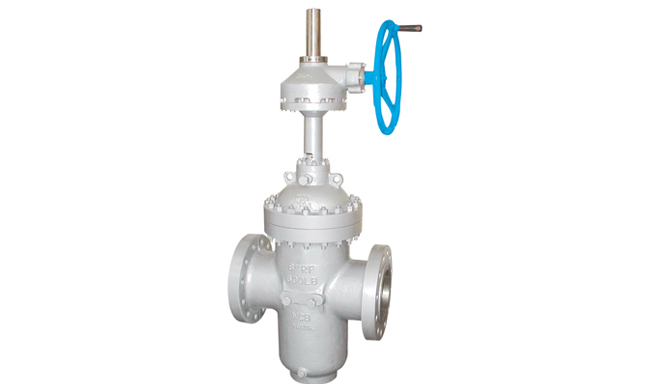

Slab Gate Valve

Slab gate valves are comprised of a single gate unit which raises and lowers between two seat rings and are primarily used for transporting crude oil and natural gas.
The design of product structure is very novelty. Appropriate material selection, strict testing, convenient operation, all these aspect make flat gate valve become an ideal equipment. Besides, flat gate valve has the function of anti-corrosion, wear-resistant, resistant to erosion. Slab gate valve is suitable for natural gas, petroleum, chemical industry, environmental protection and urban pipeline, gas pipeline conveying pipeline.
Design Feature
  • Disc with flow guiding
  • Valve seat self-cleaning
  • Cavity pressure self relief
  • Metal to metal seal
  • Resilient-seated gate valves
  • Double block and bleed
  • Low emission packing
  • Zero leakage
Design Standard
  • Design: API 6D
  • Face to face: API6D / ASME B16.10
  • Flange end: ASME B16.5 / ASME B16.47 / EN1092-2 / MSS-SP44
  • Butt-welding end: ASME B16.25
  • Test: API598/API6D
  • Fire safe: API607/API6FA
Technical Specification
  • Size: 2”~48”(DN50~DN1200)
  • Class:150Lb~900Lb(PN10,PN16,PN25,PN40,PN64,PN100,PN160)
  • Connection: Double flange /  Butt weld
  • Operation: Handwheel / Bevel gear box / Electric actuator
  • Temperature: -60°C to +160°C
  • Application: Storage tanks, Oil transmission
Material Option
  • Body:WCB / LCB / GR70
  • Disc: A105+ENP / GR70+ENP / F304 / F316
  • Stem: SS420 / 17-4PH / F316
  • Seat: F6A+PTFE / F304+PTFE / F316+PTFE
